MD 0790ex
![](uploads/image/20191114/1573707304.gif)
MD 0790ex - 6.5" mid bass - Alnico magnet
These 6.5” and 5" mid basses consist of a well considered synthetic resin basket, a light weight rigid paper cone and a proper sized Alnico magnet, and further optimized Alnico magnet motor system. It can realize quite flat and wide band frequency response effectively. MD0790ex and 0590ex achieve real and organic sounds without any distortions. Its entire range from bass to treble sound performs fresh, smooth, coherent and articulate sounds naturally. They can accomplish theirs real abilities in the proper combination with the same grade tweeters.
Music power : 120W / Sensitivity : 91dB / Frequency response : 60-7,000Hz / Outer dimension, Diameter : 166mm / Fixing hole diameter : 140.4mm / Installing depth : 65mm / Impedance : 6 ohm
-
MD 0590ex
![](uploads/image/20191114/1573701011.gif)

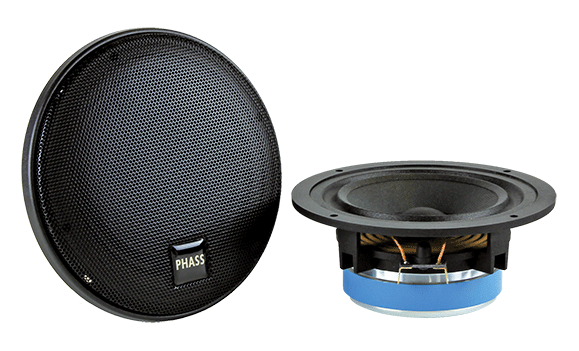

MD 0590ex - 5" mid bass - Alnico magnet
Music power : 100W / Sensitivity : 88dB / Frequency response : 90-20,000Hz / Outer dimension, Diameter : 148mm / Fixing hole diameter : 119.4mm / Installing depth : 57mm / Impedance : 6 ohm
-
MD 0780ex
![](uploads/image/20191114/1573711133.png)
MD 0780ex 6.5" mid bass - ferrite magnet
MD 0780ex adopt “ex magnetic technology” as well. These mid basses basically consist of a well considered synthetic resin basket, a light weight rigid paper cone and a proper sized ferrite magnet. It can realize a quite flat and wide band frequency response effectively. It achieves real and organic sounds without any distortions. Its entire range from bass to treble sound dissipates fresh, smooth, coherent and articulate sounds naturally. It can accomplish its real ability in the proper combination with the same grade tweeters.
Music power : 120W / Sensitivity : 91dB / Frequency response : 60-7,000Hz / Outer dimension, Diameter : 165mm / Fixing hole diameter : 141mm / Installing depth : 58mm / Impedance : 6 ohm
-
MD 0580ex
![](uploads/image/20191114/1573701975.png)

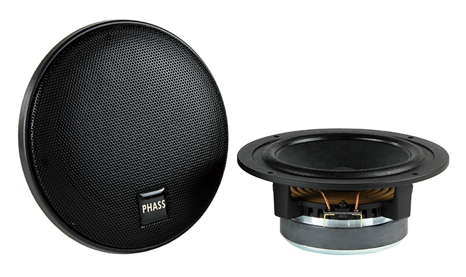

MD 0580ex 5" mid bass - ferrite magnet
0580ex adopt “ex magnetic technology” as well. These mid basses basically consist of a well considered synthetic resin basket, a light weight rigid paper cone and a proper sized ferrite magnet. It can realize a quite flat and wide band frequency response effectively. It achieves real and organic sounds without any distortions. Its entire range from bass to treble sound dissipates fresh, smooth, coherent and articulate sounds naturally. It can accomplish its real ability in the proper combination with the same grade tweeters.
Music power : 100W / Sensitivity : 88dB / Frequency response : 90-20,000Hz / Outer dimension, Diameter : 148mm / Fixing hole diameter : 119.4mm / Installing depth : 57mm / Impedance : 6 ohm
-
MW 6516Neo
![](uploads/image/20191114/1573702415.jpg)

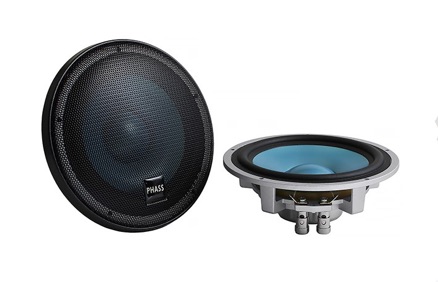

MW 6516 Neo 6.5" mid bass - Neodym magnet
This mid bass equipped with a one piece PP cone and a Neodym magnet is suitable to be driven by a high power amplifier. MW 6516 Neo will reproduce dynamic and impressive sound under such circumstances. Its shallow basket design will be matched with a narrow space.
Music power : 150W / Sensitivity : 86dB / Frequency response : 70-4,000Hz / Outer dimension, Diameter : 165mm / Fixing hole diameter : 141mm / Installing depth : 53mm / Impedance : 4 ohm
-
MW 6525
![](uploads/image/20191114/1573702666.jpg)

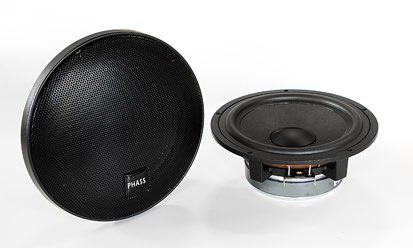

MW 6525 6.5" mid bass - ferrite magnet
MW6525 is using a rigid paper cone and a large size ferrite magnet to reproduce a natural musical sound dynamically. Its frequency band is wide and it features the reproduction ability of vast accurate musical signals. A high power amplifier is a better combination.
Music power : 150W / Sensitivity : 90dB / Frequency response : 76-4,000Hz / Outer dimension, Diameter : 165mm / Fixing hole diameter : 141mm / Installing depth : 58mm / Impedance : 4 ohm
-
MW 6518
![](uploads/image/20191114/1573705622.jpg)

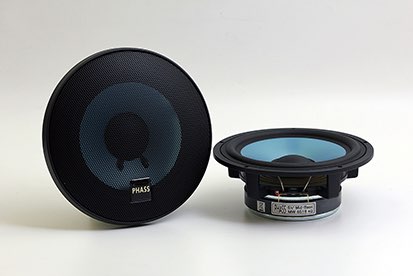

MW 6518 6.5" mid bass - ferrite magnet
MW6518 consists of a rigid PP cone and a large size ferrite magnet to reproduce a natural musical sound dynamically. Its frequency band is wide and it features the reproduction ability of vast accurate musical signals. Especially its bass sound is very comfortable. A powerful amplifier will be suitable to drive MW 6518.
Music power : 150W / Sensitivity : 91dB / Frequency response : 77-4,000Hz / Outer dimension, Diameter : 165mm / Fixing hole diameter : 141mm / Installing depth : 65mm / Impedance : 4 ohm
