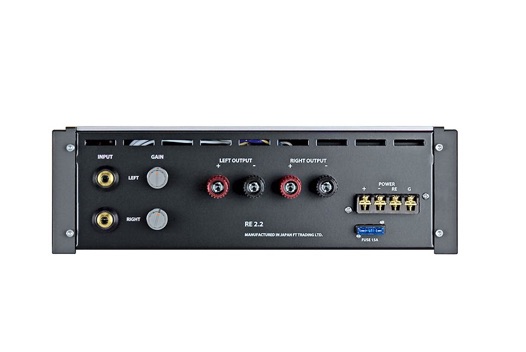

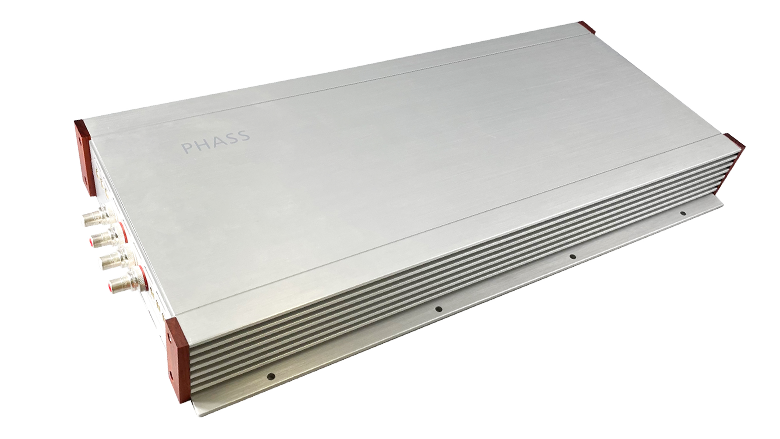

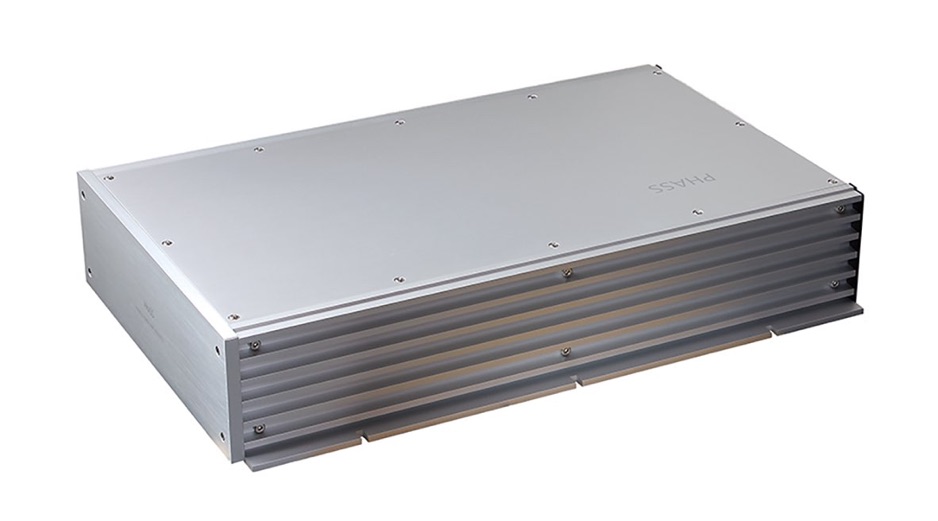

RE 2.2 specification
Output power: 2x40W / Input sensitivity : 0.25V / Input impedance : 10 K ohm / Load impedance : 4-16 ohm / Consumption current : Idling time (no signal) - 3A, Remote off time : 2mA / Size (mm) :320(W)x92(H)x504(D)
Two types amplifier circuits are available in RE series,

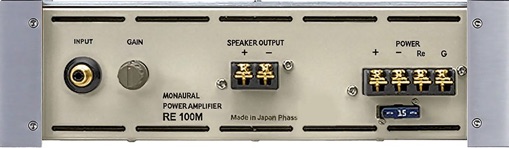

*RE 2, RE 2.2, RE 50, RE 50 HI and RE 100M - “Standard Push pull” amplifier

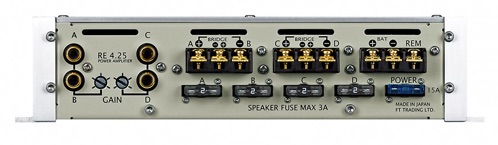

*RE 2.65 and RE 4.25 - “Single End Push Pull” amplifier
Output power: 2x40W / Input sensitivity : 0.25V / Input impedance : 10 K ohm / Load impedance : 4-16 ohm / Consumption current : Idling time (no signal) - 3A, Remote off time : 2mA / Size (mm) :320(W)x92(H)x504(D)

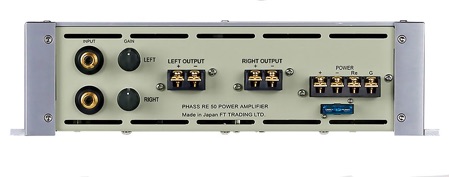

Max output power:50W x 2(1 KHz/10 ohm,RMS)•input sensitivity:0.25V•Load Impedance:4~16 ohm•Consumption current:at ldling (ON,no-signal) - 3A/at Rrmote Off - 2mA•Size(mm):280(W)X74(H)X320(D)
Max output power:50W x 2(1 KHz/10 ohm,RMS)•input sensitivity:0.25V•Load Impedance:4~6 ohm•Consumption current:at ldling (ON,no-signal) - 3A/at Rrmote Off - 2mA•Size(mm):280(W)X74(H)X320(D)

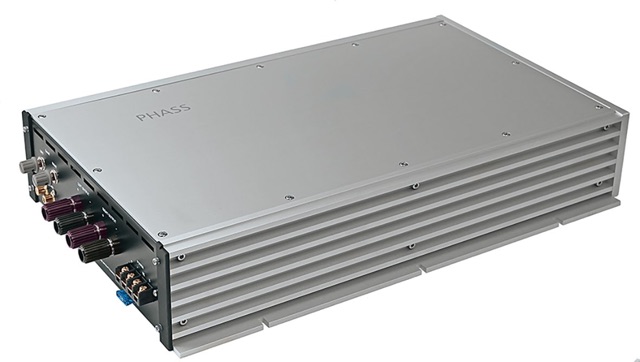

Max output power:40Wx2 (RMS, 1KHz,10ohm) / Input sensitivity(10 K ohm): RCA -10dBV(0.3V), Balance -18dBV(0.13V) / Max input level: RCA +8dBV(8V), Balance +10dBV(3.2V) / Load impedance: 4-16ohm / Consumption current: Idling time (no signal) 3A, Remote off time: 2mA / Size(mm): 320(W)x92(H)x504(D)
RE 2.65 and BLD balance line drive configuration
Max output power:65Wx2 (RMS, 1KHz, 8ohm) / Input sensitivity(10 K ohm): RCA 1.6V / Consumption current: Idle time (no signal) 1A, Remote off time: 2mA / Size(mm): 250(W)x56(H)x326(D)

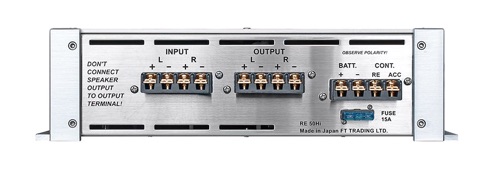

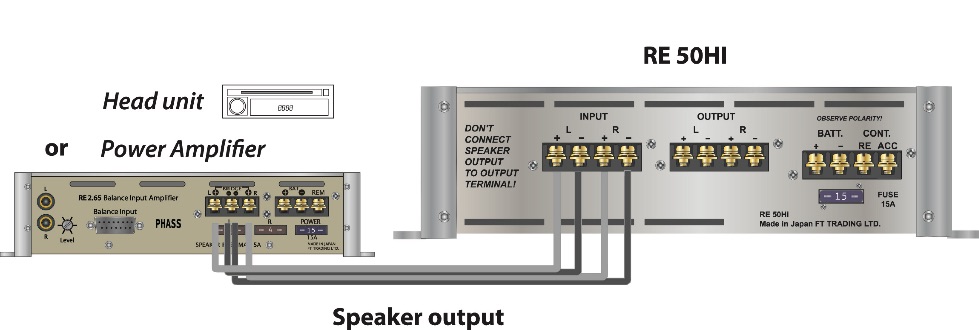

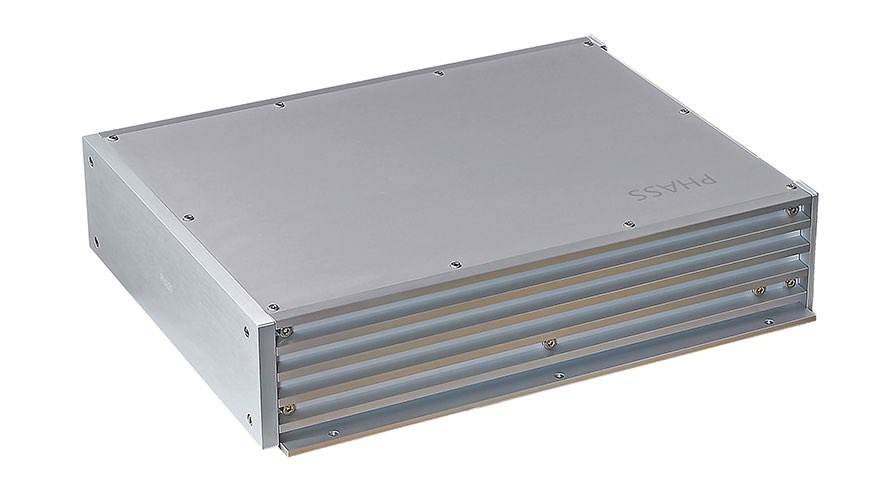

Basic configuration of RE 50HI
Output power: 2x50W / Input sensitivity : 5V / Load impedance : 4-16 ohm / Consumption current : Idling time (no signal) - 3A, Remote off time : 2mA / Size (mm) :280(W)x74(H)x320(D)

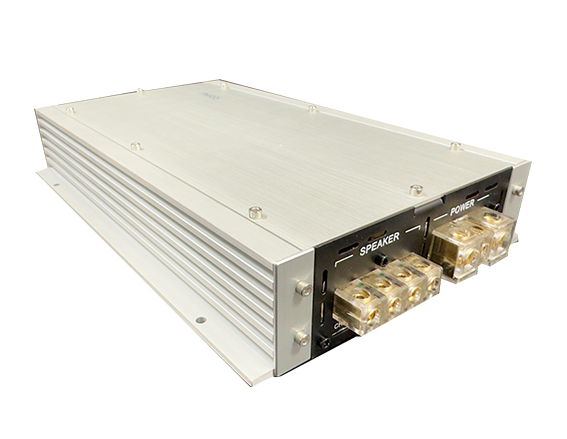

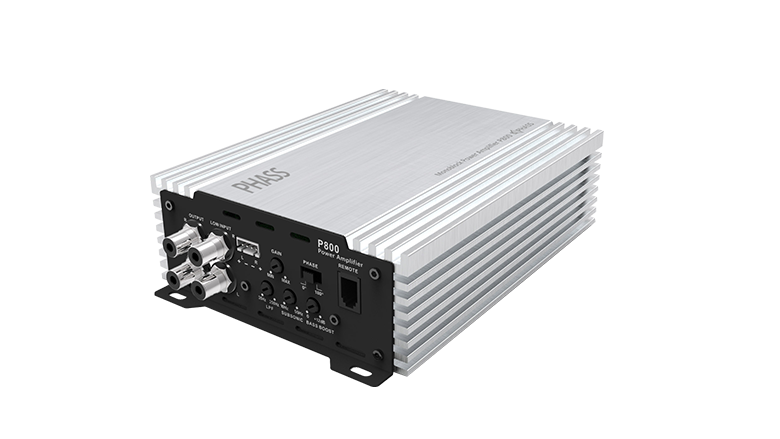

2 ohm rms power (14.4 V) 800w 4 ohm rms power (14.4 V) 400w Minimum allowable load on channel 1Ohm Input voltage level 200mv-5v Low pass filter 50-250Hz crossover 12 dB/10 BASSBOOST 0-12db (45Hz) Damping factor > 100t.h.d < 0.15% Operating voltage 8.5-16.5 V SNR > 90db Fuse rating 40A × 2 RCA input L/R dimension (WxLxH mm) 170x130x49

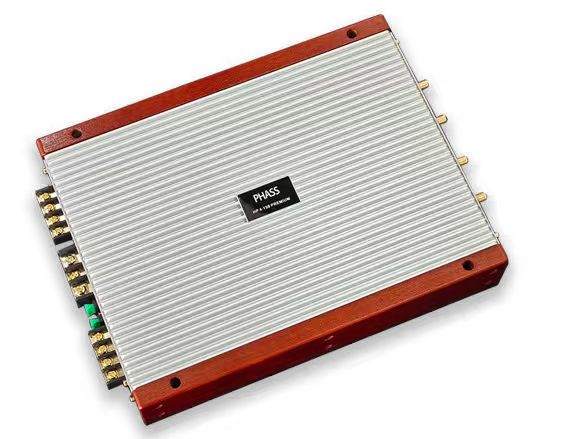

Class AB 4-channel power amplifier, the actual power reaches 75W, which increases the power by 50% compared with the original AP4.50-the internal structure is improved, the heat is controlled to improve the stability, the appearance of Japanese power amplifier series is maintained, and the sense of uniformity is completed-the input voltage of 0.5 V ~ 8V, the volume of each channel is adjusted independently, the small volume and high-efficiency design-through the audio-level accessories and high-quality optimization design, the warm and soft timbre of the original version plus clearer sound effect is maintained
Rated Output Power @ 4 Ohms: 75Wx4 @ 2 Ohms: 115x4 Bridge Output Power @ 4 Ohms: 230Wx2 Frequency Response Range: 10Hz ~ 40KHz Input Level: 0.5 V ~ 8V SNR: > 95DbTHD & Noise: < 0.05% Impedance: 2 ~ 8Ω Fuse Size: 2x25A Size: 274 * 176 * 46mm

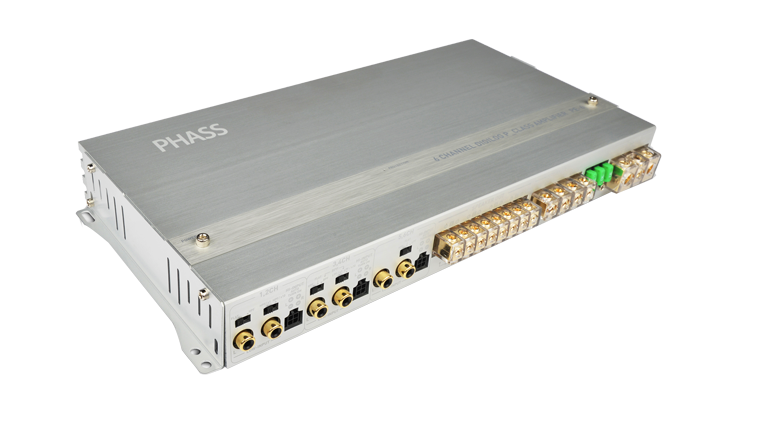

Features of PE power amplifier series: PE series is an audiophile-grade product with higher sound quality and high efficiency than PI series. Using one power amplifier can achieve high-quality HI-FI sound, and at the same time, it can save installation space. It is one of the indispensable equipment for a perfect sound system.
Working mode: Class P power amplifier/6-channel RMS Power Ratings actual power 4 Ohms: (@ 13.8 V 1% THD + N, 1 KHz) 100W x 4ch (@ 13.8 V 1% THD + N, 1 KHz) 150W x 2ch2 Ohms: (@ 13.8 V 1% THD + N, 1 KHz) 150W x 4ch (@ 13.8 V 1% THD + N, 1 KHz) 320W x 2ch Bridge 4 Ohms: (@ 14.4 V THD + N, 1 KHz) 300W x 2 (@ 14.4 V THD + N, 1 KHz) 600W x 1 Maximum power: 2500W Working voltage: 14.4 V DC (11V-16V) Input level: 0.25 V-6. 0V Frequency response: 20Hz ~ 20KHz (0,-3dB) Signal-to-noise ratio: 95dB < RMS < RMS </rmsTHD (RMS): < 0.05% Product size: 140x40x342. 4 (mm)

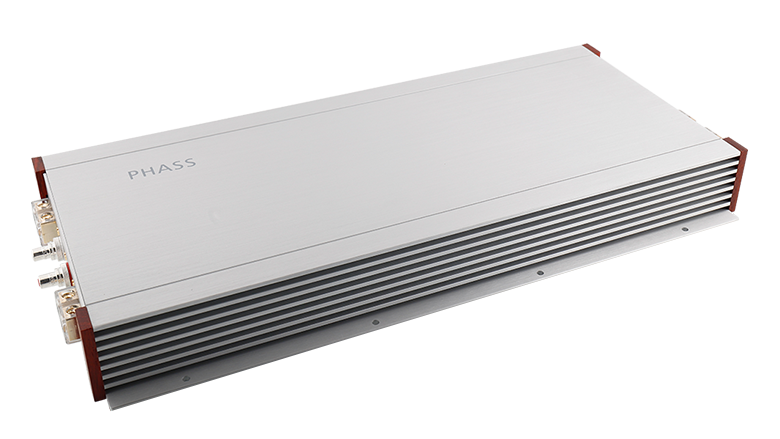

1. Double-panel design and patch technology can effectively shorten the loop impedance and line resistance, and further improve the fidelity. 2. Shielding box design reduces distortion and improves signal-to-noise ratio 3. "Bias setting" adjustment function ("Class" knob), by adjusting the knob, the power amplifier can work in pure Class A (Max) and Class AB (Min): the sound is warmer and more pleasant in pure Class A mode, while the whole machine is more efficient in Class AB mode. 4. Symmetrical design of left and right channels, higher channel separation
4 Ohm Stereo (Class AB): 110W x 2 14.4 V Power Rating (Watts) 2 Ohm Stereo (Class AB): 220W x 2 14.4 V Power Rating (Watts) 4 Ohm Stereo (Class A): 60W x 2 14.4 V Power Rating (Watts) 2 Ohm Stereo (Class A): 95W x 2 14.4 V Power Rating (Watts) Minimum Load Impedance: 2 Ohm Damping Factor: > 36 @ 1K Hz 4 Ohm Input Sensitivity Range: 0.4-6 @ 14.4 V Rated (Watts) Input Impedance: 5 kOhm Frequency Response Range: 5-250000 Hz-3 dB @ 1 Watt Linear: ± 0. 2 dB @ 1 Watt 20-20000 Hz Negative Feedback Value: 0 dB Total Harmonic Distortion (THD): < 0.8 1 kHz Maximum 50% Power Percent Crossover Distortion (IMD): < 0.12 1 kHz Maximum 50% Power Percent Signal to Noise Ratio: > 101 (> 104) dB @ 10 watts ("A" weighted) Channel separation: > 60 dB @ 1 kHz Maximum power Input voltage range: 10.5-16 volts Standby current (no input): 3.8 amps @ 14.4 V Fuse: 50 amps Dimensions (L x W x H): 492x223x54mm

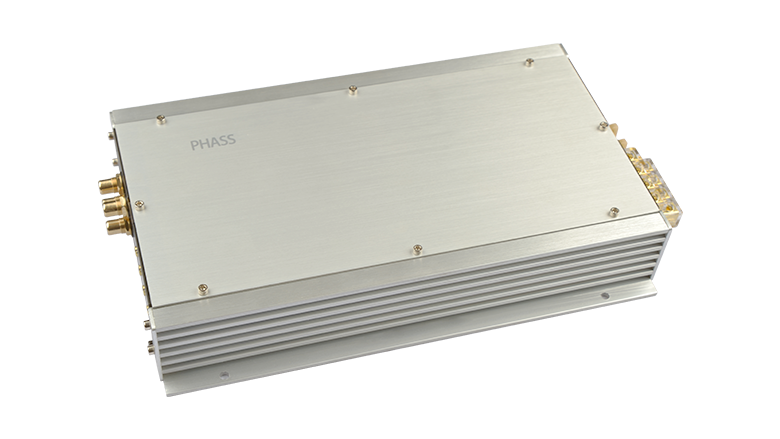

One-piece aluminum radiator, no deformation, good thermal conductivity; The surface is oxidized by drawing filaments, which makes it more elegant. Silver-plated RCA plug has smaller contact resistance and ensures pure signal input. Transparent gold-plated die-casting terminal blocks ensure abundant input energy, low enough contact resistance, built-in intelligent temperature control system, panel with working mode (CLASS) adjustment function, independent gain adjustment function of each channel
14.4 V Rated Power (W) 4Ω (Class AB) 50Wx4 2Ω (Class AB) 100Wx4 4Ω (Class A) 30Wx4 2Ω (Class A) 45Wx4 Minimum load impedance 2ohm Damping coefficient > 25 @ 1KHz4 ohm Input sensitivity range 0.4-6 @ 14.4 V Rated (W) Input impedance 20 K ohm Frequency response range 5-250 000 Hz-3 dB @ 1W linear ± 0. 2 dB @ 1W 20-20000Hz Negative feedback value 0 dB Total Harmonic Distortion (THD) < 0.81 KHz maximum 50% power percentage crossover distortion (IMD) < 0.12 1KHz maximum 50% power percentage signal-to-noise ratio > 101 (> 104) dB @ 10 watts ("A" weighted) channel separation > 60 dB @ 1KHz maximum power percentage signal-to-noise ratio > 60 dB @ 1KHz maximum power input voltage range in)
