PUREMAG series

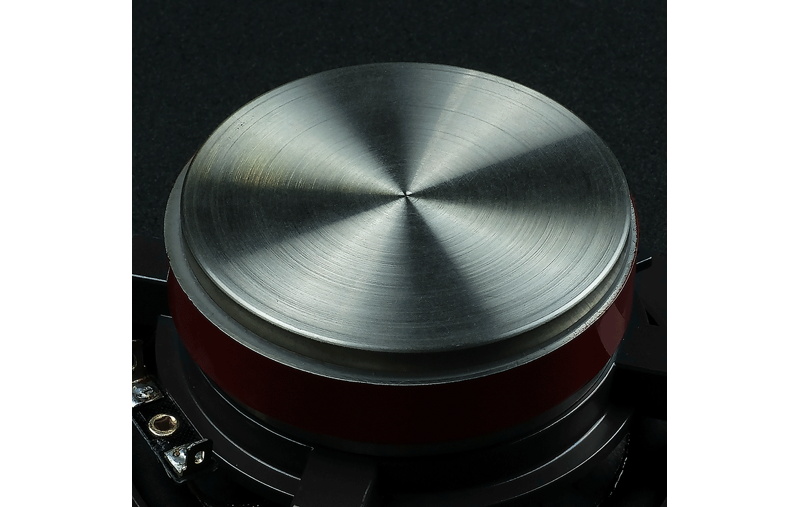

PF (Puremag Full range) is our highest range speaker unit which equipped with optimal magnetic circuit, which is only realized by the combination of the special pure metal and Alnico 5 magnet. This special pure metal from a Japanese leading company features high magnetic flux density and high permeability. Finally we accomplished the clean and linear magnetic circuit without any distortions. Our magnetic circuit can realize true reproduction of music with high fidelity and naturalness that the original music source has. Its sound world of Puremag creates will pull listeners into the real world of the reproducing music art with enthusiastic praise.

• PF 13

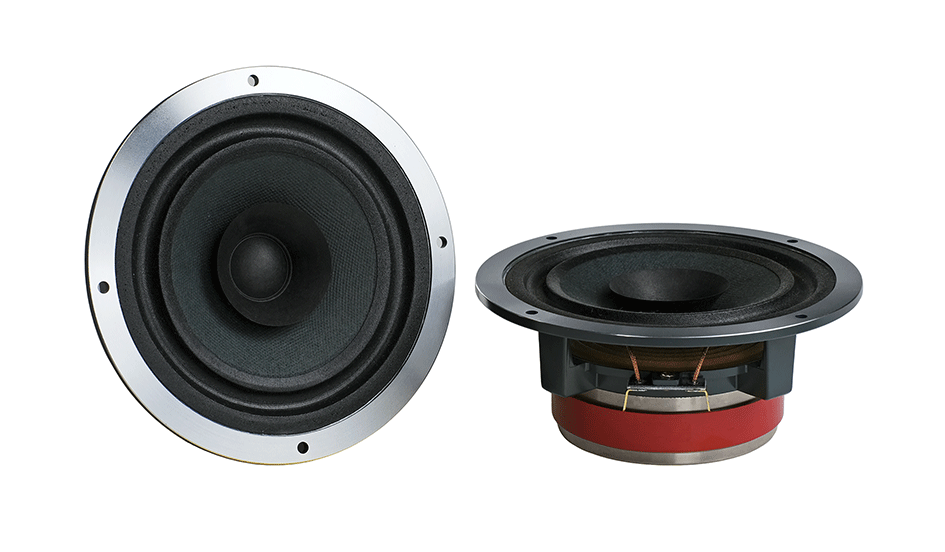

  PF 13 5 inch full range with pure magnetic technology

  Music power : 100W / Sensitivity : 88dB / Frequency response : 90-20,000Hz / Outer dimension, Diameter : 148mm / Fixing hole diameter : 119.4mm / Installing depth : 57mm / Impedance : 6 ohm

• BFD 0470AL

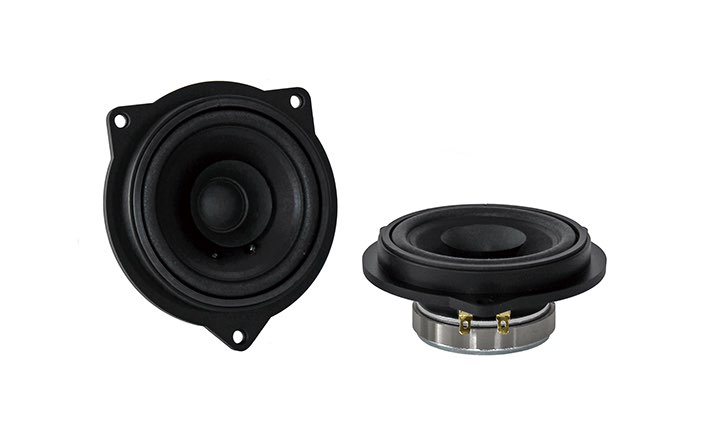

  BFD 0470AL 4

  BFD 0470AL is a home hi-fi grade full range which can revolutionize replacement type speakers. Almost of ferrite magnet speakers as the replacement use can not drastically perform the difference between replaced one and original speaker. Its paper cone an

  Music power : 60W / Sensitivity : 83dB / Frequency response : 90-20,000Hz / Fixing hole diameter : 104.5mm / Installing depth : 35mm / Impedance : 6 ohm

  BFD 0470AL parameter

  MANUFACTURERPHASS	Rms2.8602	MAS81.8052
  MODELFD0590ex	Qms1.0695	RAT100187.7000
  Fs85.7208	Qes0.7469	SD0.0083
  Fs Added Mass36.2954	Qts0.4398	LCES14.9149
  Fs Known Vol0.0000	Cms0.6070	CMES231.1257
  Added Mass26.0000	Mms5.6795	RES8.5914
  Known Vol0.0000	BL4.9571	MMD5.2490
  Diameter103.0000	VAS5.8842	RMT6.9557
  ZMax14.5914	dBSPL88.9795	eta0.4764
  ZMax Added Mass11.0360	L 1kHz0.1934	Z Min8.3907
  ZMax Known Vol0.0000	L 10kHz0.0565	Z AVG10.0967
  Z F1F29.3567	CAS4.213929E-8
  Re6.0000	RAS41197.3500

• PF 10

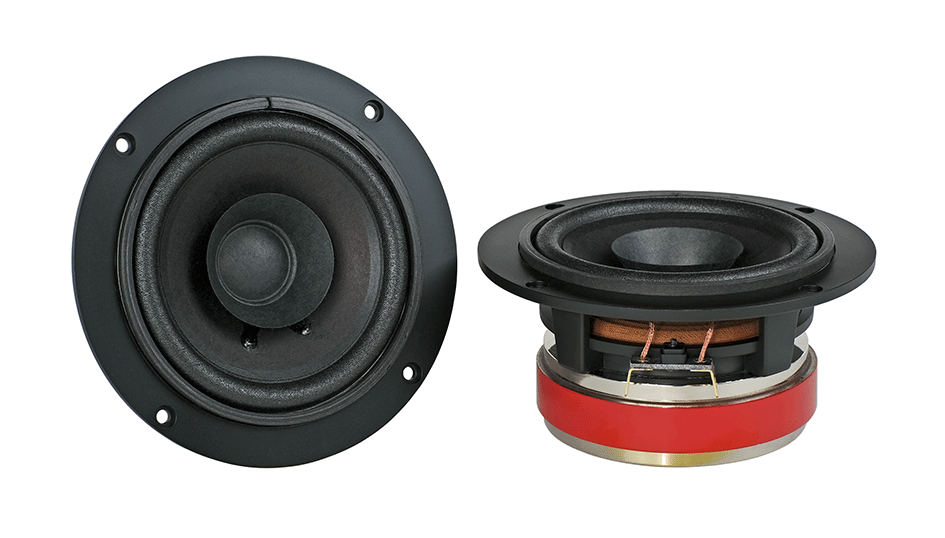

  PF 10 4 inch full range with pure magnetic technology

  Music power : 100W / Sensitivity : 83dB / Frequency response : 100-20,000Hz / Outer dimension, Diameter : 126mm / Fixing hole diameter : 101.8mm / Installing depth : 54mm / Impedance : 6 ohm

• PT 25

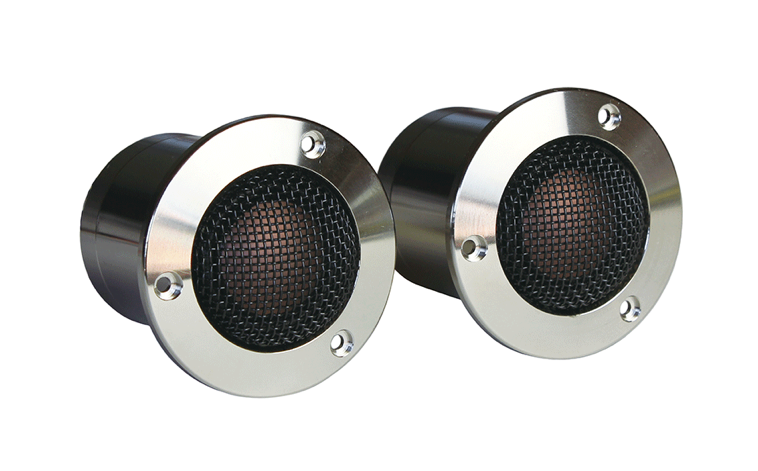

  PT 25 25 mm tweeter by Pure Magnetic Technology

  Music power : 40W / Sensitivity : 90 dB / Frequency response : 700-20,000Hz / Outer dimension, Diameter : 43mm / Installing depth : 48.6 mm /impedance : 6ohm
