PHASS Neo series

“PHASS Neo” was set up in order that we arrange not only car audio products with entry level prices but also high quality products which can get musical quality sounds.

• PI-165E

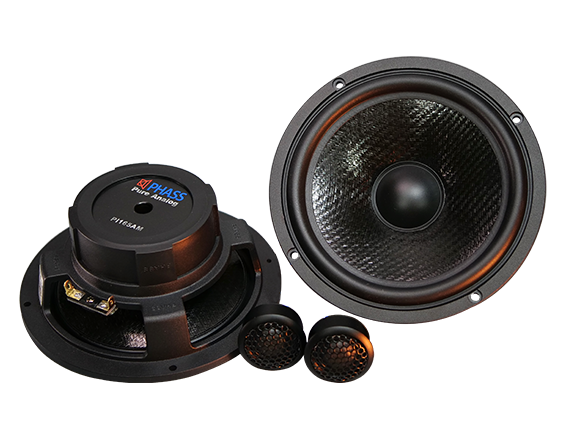

• PI-165AM



  This 2 way system consists of a 165 mm mid bass and 20 mm tweeter. The mid bass (P165IA) has a thin aluminum cone and a ferrite magnet. The Neodym magnet tweeter (P20IT) uses the diaphragm combined with wool and silk. PI-165A features rhythmical and swinging sounds, and PI-165A is suitable for car audio beginners.

  Music power : 40W / Frequency response : 60-20,000Hz / Mid bass impedance : 2.45 ohm / Mid bass (P165IA) Outer dimension, Fixing P.C.D : 145mm / Installing depth : 63mm / Tweeter (P20IT) / Tweeter impedance : 4 ohm / Diameter : 39.5mm / Mounting hole : 36mm / installing depth : 14mm /Crossover :

• PI-165GM

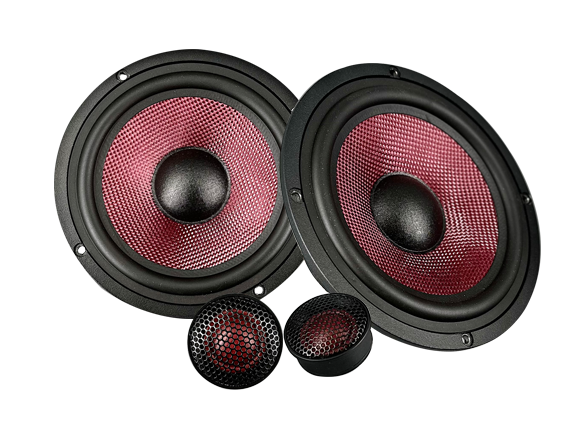

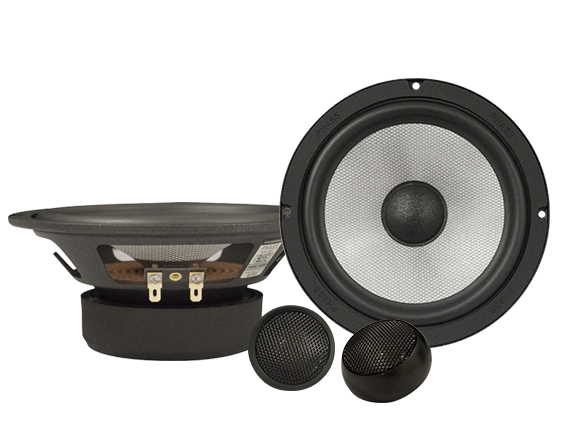

  PI-165GM 2 way speaker system

  This 2 way system consists of a 165 mm mid bass and 25 mm tweeter. The mid bass (P165IG) a glass fibre based cone and a ferrite magnet. The Neodym magnet tweeter (P25IT) uses the diaphragm combined with wool and silk as well. P165IG performs dynamic and substantial music sounds and P25IT shows good high frequency range quality. Generally PI-165G is the cost effective system speaker we can recommend widely.

  response : 60-20,000Hz / Mid bass impedance : 2.45 ohm / Mid bass (P165IG) Outer dimension, Fixing P.C.D : 145mm / Installing depth : 63mm / Tweeter (P25IT) / Tweeter impedance : 4 ohm / Diameter : 47mm / Mounting hole : 44mm / installing depth : 13mm /Crossover :

• PE-170PM

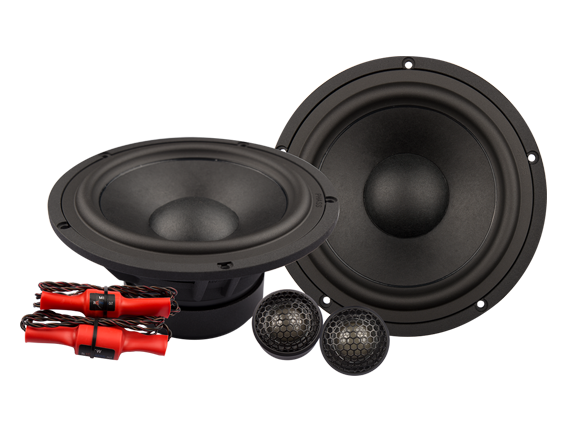

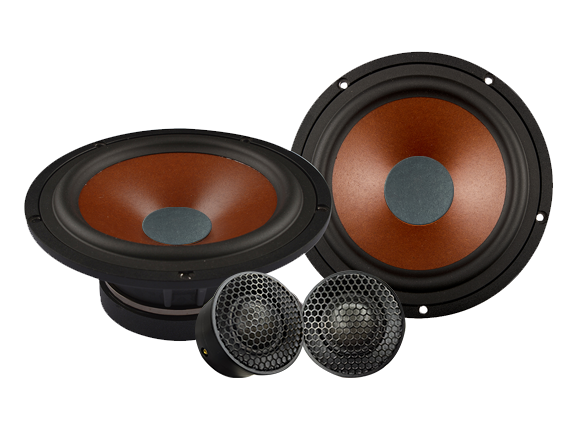

  PE-170PM two division loudspeaker system

  It is composed of high pitch p25es, mid bass p170ep and 4 frequency dividers Treble p25es material: translucent silk Mid bass p170ep material: paper and wool mix Frequency divider: XPP capacitor and coil for Feishi audio (2 for treble and 2 for mid bass) Features: outstanding features, very deep low-frequency diving, can reach 30Hz, so that the listener has a feeling of no subwoofer rather than a subwoofer, the sound quality is clear and thorough, the voice color is warm, the degree of reduction is high, and the resolution is strong.

  High pitch parameter p25es outer diameter: 25.5mm voice coil impedance: 3.6 Ω frequency range: 1.3khz-24.5khz sensitivity (SPL): 90 dB (1m / 1W) rated power input: 20W maximum power input: 40W maximum outer diameter: 47mm magnet: NdFeBMid bass parameter p170ep outer diameter size: 7 "171mm voice coil impedance: 2.5 Ω frequency range: 51hz-7khz sensitivity (SPL): 89 dB (1m / 1W) rated power input: 50W maximum power input: 120W magnet: installation depth: 67mm Mounting hole: 151mm

• PE-170PL



• PE-170P3

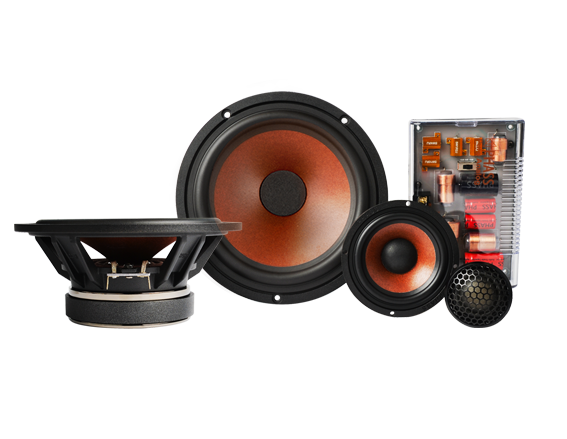

  PE-170P3 3 way speaker system

  This 3 way system consists of a 170 mm mid woofer and 88mm mid range and 25 mm tweeter. The mid woofer (P170EP) a paper fibre based cone and a ferrite magnet (be specialized in low-pitched sounds) . The mid range (P88EP) a paper fibre based cone and a Neodym magnet (have a wide frequency band) The tweeter (P25ES) Neodym magnet uses the diaphragm combined with translucence silk as well. PE-170P3 with a system that can be implemented without sub-woofer, you can experience high levels of information, stage formation, and three-dimensional sound. Generally PE-170P3 is the cost effective system speaker we can recommend widely.

  Music power : 120W / Frequency response : 49-24,500Hz /Tweeter (P25ES) / impedance : 3.6 ohm / Diameter : 47mm / Mounting hole : 48mm / installing depth : 14mm,  Mid range(P88EP) / impedance : 2.5 ohm / Outer dimension, Fixing P.C.D : 77mm / Installing depth : 36mm Mid bass (P170EP) / impedance : 2.5 ohm / Outer dimension, Fixing P.C.D : 148mm / Installing depth : 67mm

• PI-165G3



  PI-165G3 3 way speaker system

  Despite the initial version of PI-165G is able to capture the sufficient range of audio frequency, this newly released PI-165GB can more easily and efficiently secure audio frequency spectrum with the use of P88IG in 3Way form. The use of 3Way form not only optimizes mid-wooper and twitter by suitable tuning technique, but also gives rise to efficiency in sound-printing and tuning particular sound from speaker congee consisting of glass fiber. It provides detailed, not irritating but smooth and deep timbre or sound quality.

  Music power : 100W / Frequency response : 60-20,000Hz /Tweeter (P20IT2) / impedance : 4 ohm / Diameter : 39.5mm
  / Mounting hole : 36mm / installing depth : 14mm,  Mid range(P88IG) / impedance : 2.5 ohm / Outer dimension, Fixing P.C.D : 77mm / Installing depth : 36mm Mid bass (P165IG2) / impedance : 2.2 ohm /Outer dimension, Fixing P.C.D : 145mm / Installing depth : 63mm



• P88PM

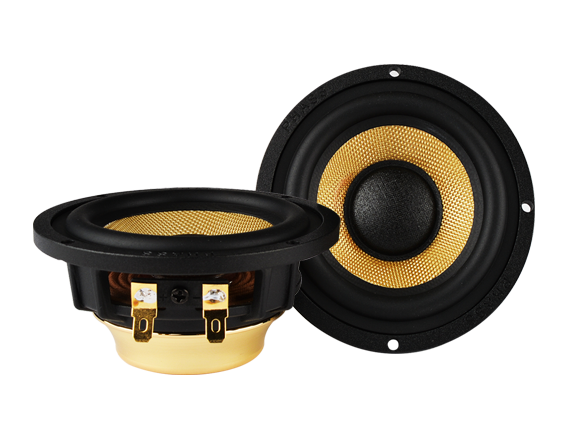

  P88PM Single baritone

  Material: paper and wool mixing features: small size design, can be combined with pe-170p into a three-way frequency set, improving the installation convenience.

  Pitch parameter p88pm= outer size: 3.5 "88mm voice coil impedance: 2.5 Ω frequency range: 112hz-14khz sensitivity (SPL): 90 dB (1m / 1W) rated power input: 50W maximum power input: 90W magnet: installation depth: 36mm Mounting hole: 76mm

• PE-88P For BENZ

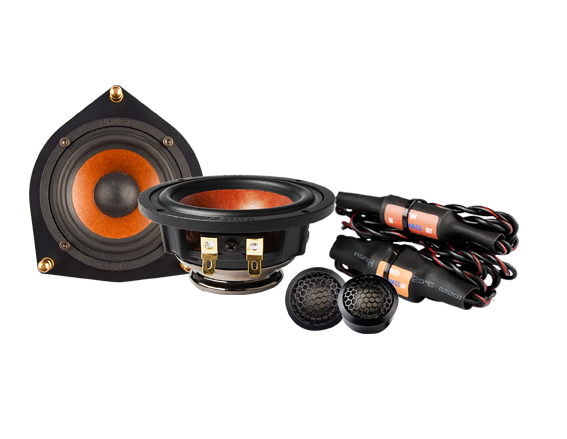

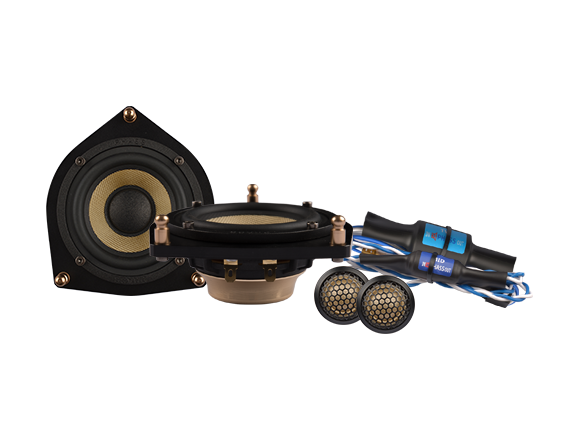

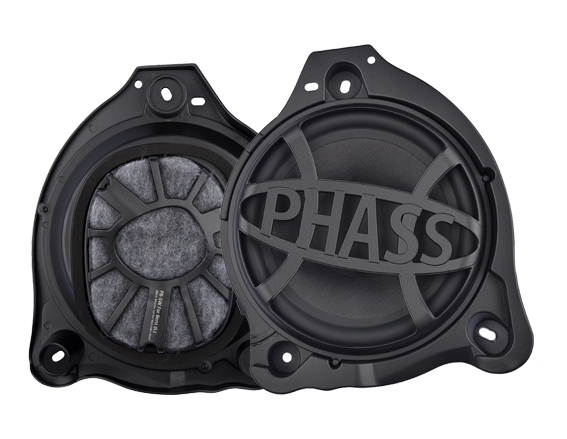

  PE-88P For BENZ Special two frequency division system

  It is composed of high pitch p20es, middle and low pitch p88ep and 5 frequency dividers. It provides a special aluminum alloy washer frame and a special frequency divider for the original subwooferHigh pitch P20s material: translucent silkMedium bass p88ep material: paper and wool mixFrequency divider: XPP capacitor and coil for Feishi audio (2 for treble, 2 for mid bass and 1 for subwoofer)

  High pitch parameter p20es voice coil size: 20.4mm voice coil impedance: 3.6 Ω frequency range: 1.62 kHz - 23khz sensitivity (SPL): 91 dB (1m / 1W) rated power input: 15W maximum power input: 30W maximum outer diameter: 39.5mm Magnet: NdFeBPitch parameter p88ep outer size: 3.5 "88mm voice coil impedance: 2.5 Ω frequency range: 112hz-14khz sensitivity (SPL): 90 dB (1m / 1W) rated power input: 50W maximum power input: 90W magnet: installation depth: 36mm Mounting hole: 76mm

• PE-88P For BMW



  PE-88P For BMW Two frequency division system

  It is composed of high pitch p20es, middle and low pitch p88ep and 5 frequency dividers. It provides special aluminum alloy washer frame and special frequency divider for subwoofer of the original car. High pitch P20s material: translucent silk, middle and low pitch p88ep material: paper and wool mixed frequency divider: XPP capacitor and coil for Feishi sound (2 for high pitch, 2 for middle and low pitch, and one for heavy bass)

  High pitch parameter p20es voice coil size: 20.4mm voice coil impedance: 3.6 Ω frequency range: 1.62 kHz - 23khz sensitivity (SPL): 91 dB (1m / 1W) rated power input: 15W maximum power input: 30W maximum outer diameter: 39.5mm Magnet: NdFeB
  Pitch parameter p88ep outer size: 3.5 "88mm voice coil impedance: 2.5 Ω frequency range: 112hz-14khz sensitivity (SPL): 90 dB (1m / 1W) rated power input: 50W maximum power input: 90W magnet: installation depth: 36mm Mounting hole: 76mm

• PE88P For BMW-3



• PI88G For Benz&BMW Benz



• PE88P For Benz-3



•

• P257AM



• P257GM



• P270EP



• P270EA



• PHASS P220SL



  P220SL Product Type: Subwoofer Product Description: No Space, Small Volume, Large Energy, High Cost Performance Technical Parameters: Outer Diameter Size: 221mm/8inchs Voice Circle Impedance: 3.6Ω Rated Power: 150W Maximum Power: 250W Sensitivity: 86dB Frequency Range: 33Hz-1.2KHz Magnet Size: 120*25mm Installation Depth: 110mm Installation Caliber: 187mm

• New PI-165AM
