System speaker
TR 6.5ex（AL165）
TR 6.5ex / 6.5（AL165）

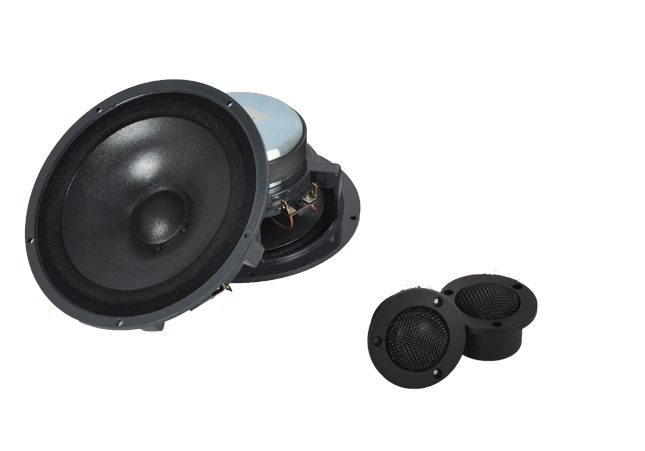

TR 6.5ex is high end class 2 way loudspeaker system which idealized the balance of mid bass unit and tweeter unit completely. The woofer unit of MD 0790ex has a high grade magnet circuit consists of Alnico magnet and precise metal parts, and tweeter unit of AT 25ex also equipped an Alnico magnet and precise lathed metal parts. This 2 way system will reproduce quite smooth, warm, detailed and organic sound like full range speakers.
Besides, the full range unit of FD 0790ex can also make optimal 2 way system with the completely flat frequency response instead of MD 0790ex mid bass unit.Music power : 100W / Frequency response : 60-20,000Hz / New Mid bass(MD 0790ex or FD 0790ex) Outer dimension, Diameter : 165mm / Fixing hole diameter : 140.4mm / Installing depth : 58mm / Tweeter (AT 25ex) Diameter : 37.5mm / Crossover : PX240HG-kai
TR 5.0ex（AL150）
TR 5.0ex - 5（AL150）
Music power : 100W / Frequency response : 90-20,000Hz / Mid bass(MD 0590ex)Outer dimension, Diameter : 148mm / Fixing hole diameter : 119.4mm / Installing depth : 57mm / Tweeter (NT 25ex) Diameter : 59mm / Crossover : PX202W

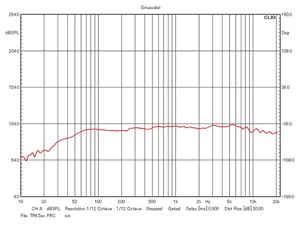

Reference of TR 5.0ex（AL150） frequency response curve:
SR 6.5ex(FC165)
SR 6.5ex / 6.5(FC165)

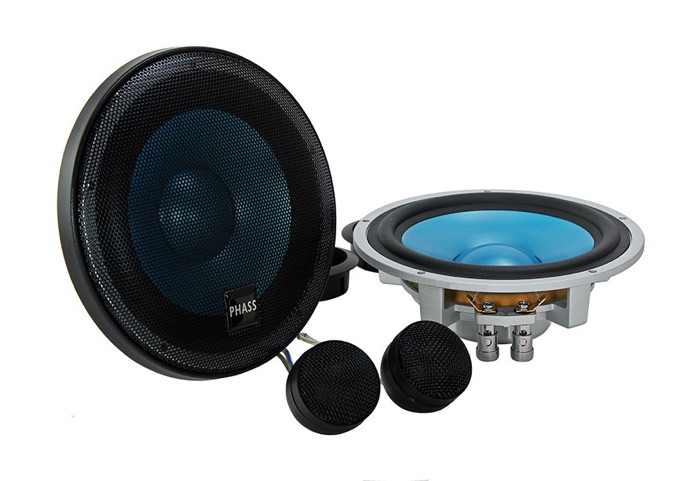

SR 6.5ex is a middle class 2 way loudspeaker system which idealized the balance of mid bass unit and tweeter unit completely. The woofer unit of PMD 6.5 has a special fabric cone and precise ferrite magnetic circuit, and tweeter unit of NT 25ex also equipped with an Neodym magnet and precise lathed metal parts. This 2 way system will produce smooth, warm, detailed and organic sound with good balance.
Music power : 100W / Frequency response : 60-20,000Hz / New Mid bass(PMD 6.5) Outer dimension, Diameter : 165mm / Fixing hole diameter : 140.4mm / Installing depth : 58mm / Tweeter (NT 25ex) Diameter : 37.5mm / Crossover : PX201HG
SR 5.0ex（FC150）
SR 5.0ex - 5（FC150）
Music power : 100W / Frequency response : 90-20,000Hz / Mid bass(PMD 5.0ex)Outer dimension, Diameter : 148mm / Fixing hole diameter : 119.4mm / Installing depth : 57mm / Tweeter (NT 25ex) Diameter : 59mm / Crossover : PX201HG
Reference of SR 5.0ex（FC150） frequency response curve:
-
MR 6.5-20B
MR 6.5-20B / 6.5

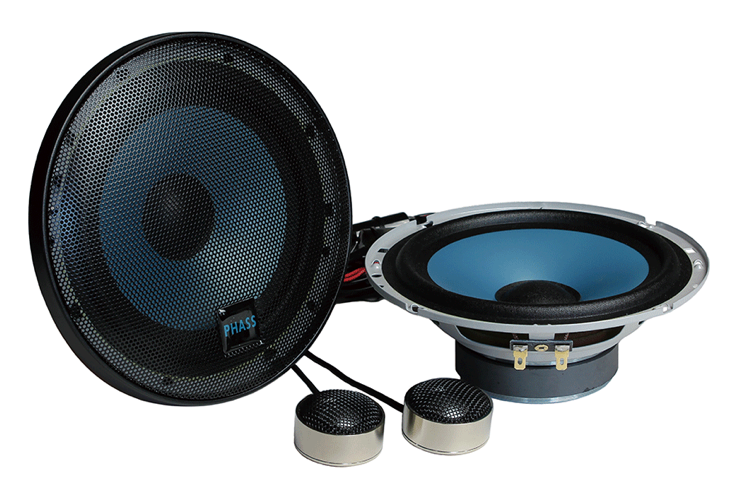

MR6.5 consists of a PP cone mid bass and a small Neodym magnet tweeter. This original combination can perform dynamic sounds from strong bass range to clear highest range rhythmically in good balance. Its abstract expression reproduced by only MR6.5 is q
Music power : 150W / Frequency response : 50-20,000Hz / Mid bass(MW6518) Outer dimension, Diameter : 165mm / Fixing hole diameter : 141mm / Installing depth : 58mm / Tweeter (NT20B) Diameter : 43mm / Crossover : PX203W-K
-
HR 6.5
HR 6.5 / 6.5" 2 way system

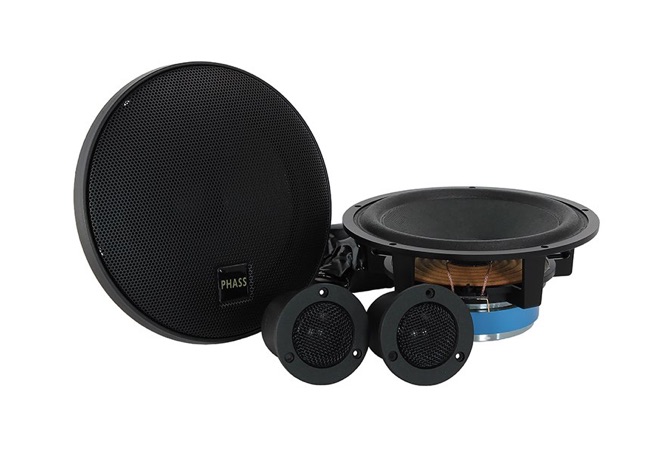

This new system consists of 28 mm Neodym magnet tweeter NT 28B and MW 6516Neo 6.5" Neodym magnet mid bass. The tweeter of NT 28B adopts a silk fabric diaphragm and high grade Flat copper wire voice coil, and it is incorporated in plastic housing, the mid bass MW6516Neo has one piece molding PP cone driven by strong Neodym magnet. HR6.5 can perform dynamic coherent sound with great musicality with keeping flat frequency response.
Music power : 120W / Frequency response : 60-20,000Hz / Mid bass(MW6516Neo) Outer dimension, Diameter : 165mm / Fixing hole diameter : 141mm / Installing depth : 53mm / Tweeter (NT 28B) Diameter : 62 mm / Crossover : PX203W-K
-
MB 4SS
MB 4SS / 4" 2 way system

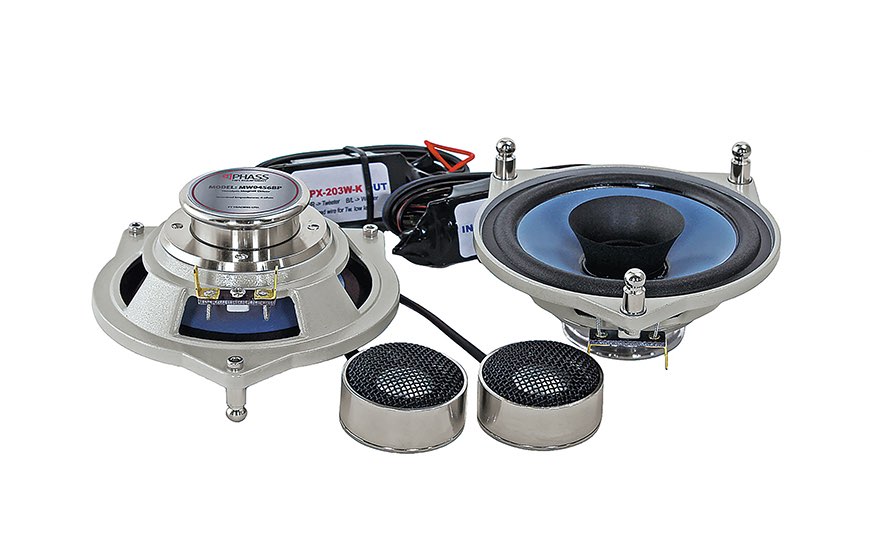

MB 4SS is a replacement type 2 way speaker system for Mercedes (S, E and C class). Its mid bass driver adopts a special chemical cone and Neodym magnet system, and its tweeter adopts a 20 mm Aluminum diaphragm and Neodym magnet system. Although this mid bass driver has a small body, it can realize high sensitivity (87 dB) by a strong magnet system, and it can achieve the optimal balance with 20 mm tweeter.
The combination of the paper cone on the mid bass and the aluminum diaphragm of tweeter can compose natural and profound sounds.
This mid bass driver unit adopts three metal pins can be installed into the original position of the car.
After taking off three pins it is possible for this 4 inch mid bass to be installed onto ordinary wooden baffle.Music power : 100W / Frequency response : 120-20,000Hz / Mid bass (MW 0456BP) Outer dimension, Fixing P.C.D : 115mm / Installing depth : 35mm / Tweeter (NT 20SG) Diameter : 40mm / Crossover : 12/12dB (PX202W), High pass and Low pass separated type.
-
ER 6.5
ER 6.5 / 6.5" 2 way system
ER 6.5 consists of a newly developed PP cone mid bass driver and a 20 mm Neodym magnet tweeter. This optimal combination can perform dynamic sounds from strong bass range to clear highest range rhythmically in good balance. Its abstract expression reproduced by only ER6.5 is quite comfortable and interesting.
Music power : 100W / Frequency response : 60-20,000Hz / Mid bass(MD6575) Outer dimension, Diameter : 165mm / Fixing hole diameter : 145mm / Installing depth : 54.5mm / Tweeter (NT 20SG) Diameter : 38mm / Crossover : PX203W-K
-
MB 4BP
MB 4BP / 4

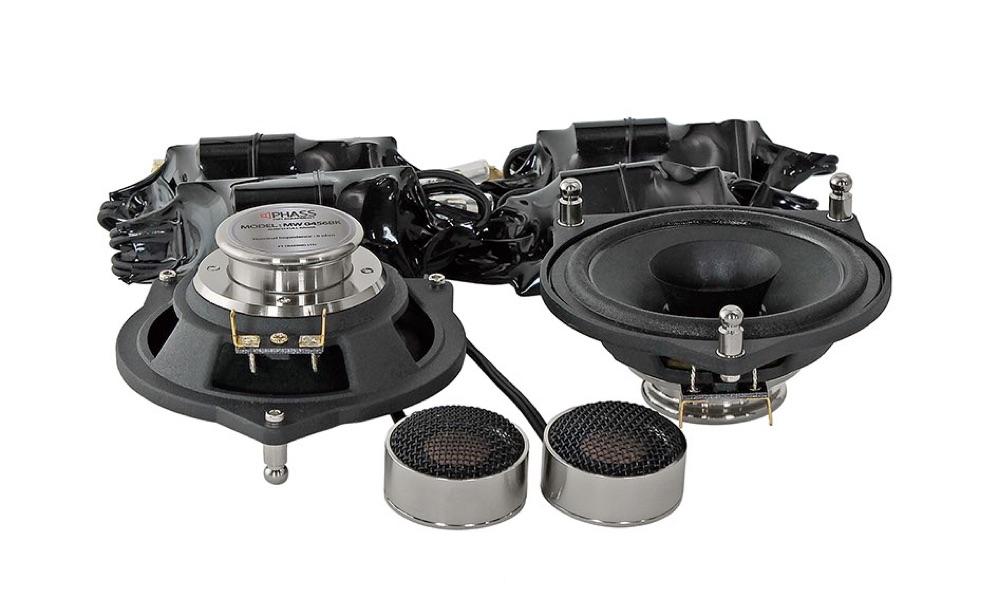

MB 4SS is a piccolo 2 way speaker system. Its mid bass driver adopts a natural paper cone and Neodym magnet system, and its tweeter adopts a 20 mm Aluminum diaphragm and Neodym magnet system. Although this mid bass driver has a small body, it can realize high sensitivity (87 dB) by a strong magnet system, and it can achieve the optimal balance with 20 mm tweeter
The combination of the paper cone of the mid bass and the aluminum diaphragm of tweeter can compose natural and profound sounds.
This mid bass driver unit adopts three metal pins can be installed into the original position of the car. After taking off three pins it is possible for this 4 inch mid bass to be installed onto ordinary wooden baffle.Music power : 100W / Frequency response : 120-20,000Hz / Mid bass (MW 0456BK) Outer dimension, Fixing P.C.D : 115mm / Installing depth : 35mm / Tweeter (NT 20GP) Diameter : 40mm / Crossover : 12/12dB (PX202W), High pass and Low pass separated type.
